Thermal Reading Is Essential When Comes To Heating Process. Do You Face Difficulty In Measure Thermal In Heating Process?
If YES. Well, We Would Like To Introduce You Our Smart Thermal Imager Sensor Called
PANDORA THERMIKOS
THERMAL MAPPING SOLUTION
IoT Solution for Real-Time Monitoring
Discover our groundbreaking Thermal Mapping Solution, where IoT technology and heat map unite! This cutting-edge system is designed to help you monitor the thermal reading across your machine. Leveraging a network of advanced sensors and connected devices, it captures and processes real-time thermal data, transforming it into stunning heat maps. With customizable alerts and data logging, optimizing your machine for energy efficiency has never been more effortless. Embrace the future of thermal management with our Thermal Mapping Solution – Thermikos
Capabilities
- It able to displays the heat map in our web app
- It able to measure and monitor the heat profile across a whole area, rather than at a single point
- It equips with truly wireless technology, wireless connectivity and battery powered
THERMAL MAPPING SOLUTION
IoT Solution for Real-Time Monitoring
Discover our groundbreaking Thermal Mapping Solution, where IoT technology and heat map unite! This cutting-edge system is designed to help you monitor the thermal reading across your machine. Leveraging a network of advanced sensors and connected devices, it captures and processes real-time thermal data, transforming it into stunning heat maps. With customizable alerts and data logging, optimizing your machine for energy efficiency has never been more effortless. Embrace the future of thermal management with our Thermal Mapping Solution – Thermikos
Capabilities
- It able to displays the heat map in our web app
- It able to measure and monitor the heat profile across a whole area, rather than at a single point
- It equips with truly wireless technology, wireless connectivity and battery powered
Check out the video to understand our IOT THERMAL MAPPING SOLUTION
Product Spectification
Technical Data
| Operating Temperature Range | -10 to 70°C |
|---|---|
| Operating Humidity Range | 20% to 95% |
| Number of Elements | 1024 ( 32 x32 ) |
| View Angle *¹ | X direction = 90 ° Y direction = 90 ° |
| Object Temperature Output Accuracy *² | Within ±3.0°C Measurement condition: Vcc = 5.0 V Tx = 25°C Ta = 25°C Central 16×16-pixel area |
| Object Temperature Detection Range *² | 0 to 200°C |
| Ambient Temperature Detection Range *² | 0 to 80°C |
| Display Refresh Time | Real-Time |
| Power Supply Voltage / Battery Life | Direct powered with 5v 3A adaptor and with a backup battery (last more than 1 hour) |

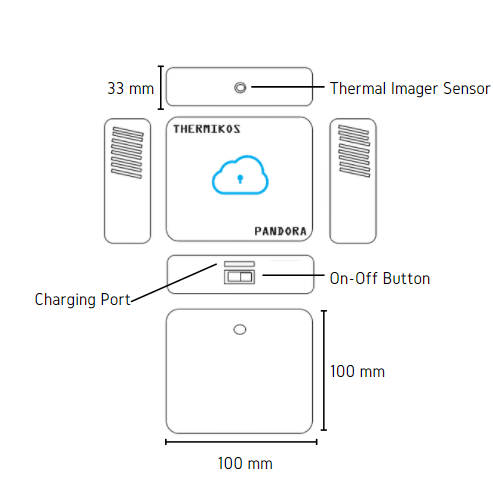

Pandora THERMIKOS product sketch
Common Data
Battery Type
18650 Lithium Battery
Weight
140 g ( battery included )
Dimensions
Length x Width x Height: 100 x 100 x 33 mm
Material / Housing
ABS
Data Logger
50,000 measuring values
Software
PANDORA
